UNS S66286 - Alloy A-286

Name: UNS S66286 - Alloy A-286
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

UNS S66286 - Alloy A-286 is an iron base superalloy offering excellent high temperature strength and corrosion resistance up to 1300 °F (704 °C). Its low temperature capabilities make it a ductile, non-magnetic choice for applications down to at least -320 °F (-196 °C), and it can be cold drawn and formed for custom applications.

Equivalent grades

• UNS S66286
• Alloy A-286
• ZbNCT25
• DIN 1.4944

Chemical Composition Reference

Fe: 54%

Ni: 25.5

Cr: 14.8%

Ti: 2.13%

Mo: 1.3%

Mn: 1%

Si: 0.5%

V: 0.3%

Al: 0.18%

C: 0.04%

P: 0.02%

S: 0.015%

B: 0.006%

Physical Property Reference

• Density: 7.92 g/cm³

• Tensile Strength: 1035 MPa

• Yield Strength: 759 MPa

• Elongation: 25%

• Melting point: 1399°C

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Thick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod

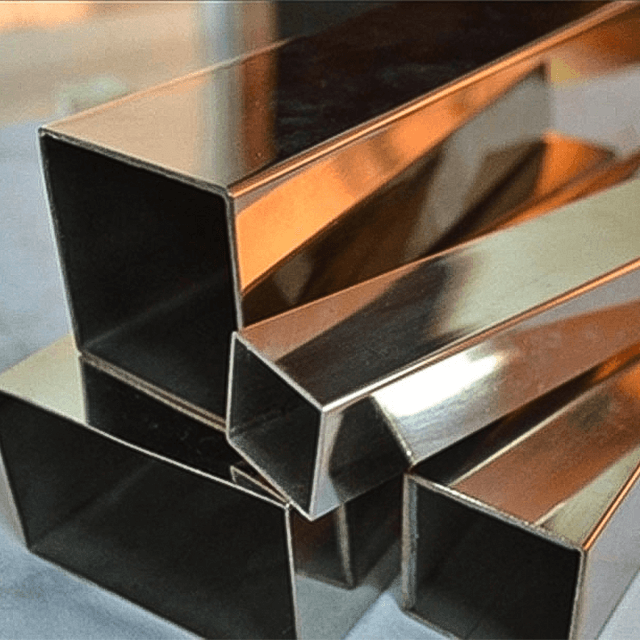

• Pipe/Tube

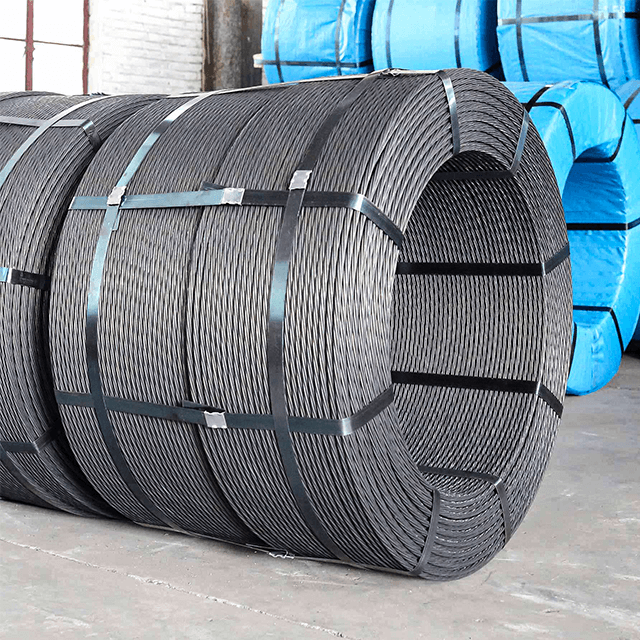

• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

UNS S66286 - Alloy A-286

Essential details

UNS S66286 - Alloy A-286 offers superior heat resistance, with maximum strength retention even at extreme temperatures of -320 to 1300°F. Its oxidation resistance is unmatched, able to withstand 1500°F continuously and 1800°F intermittently. Perfect for use in jet engine and steam turbine components, and fasteners and springs in high-heat settings.

Applications:

- Seal rings

- Retaining rings

- Jet engine components

- Power generation components
