Nicrofer 3127 hMo

Nicrofer 3127 hMo

Nicrofer 3127 hMo is an iron-nickel-chromium-molybdenum alloy enriched with nitrogen. It is well-suited for usage in chemical and petrochemical industries, environmental engineering, and oil and gas extraction.

Equivalent grades

• Nicrofer 3127 hMo
• W.Nr. 1.4562
• UNS N08031
• Alloy 31
• X1NiCrMoCu32-28-7

Chemical Composition Reference


Physical Property Reference

• Density: 8.1 g/cm³

• Melting Range: 1350-1370 ℃

• Tensile Strength: Min 650 MPa

• Yield Strength: MIN 276 MPa

• Elongation: Min 40%

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire

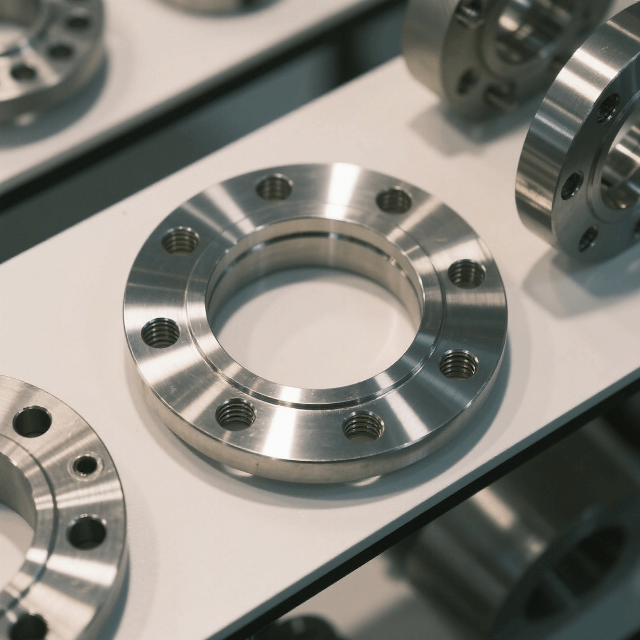

• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

Nicrofer 3127 hMo

Essential details
Nicrofer 3127 hMo is an iron-nickel-chromium-molybdenumalloy with nitrogen addition. Developed by ThyssenKrupp VDMit was designed to fill the gap between existing superausteni-tic stainless steels and nickel alloys. Nicrofer 3127 hMo isparticularly well suited to applications in chemical andpetrochemical industries, environmental engineering, and oiland gas production.


- Components for flue gas desulfurization (FGD) plants

- Plants for the production of phosphoric acid via the wet digestion process

- Pipes and heat exchangers for sulfuric acids contaminated with chlorides

- Pipes containing ocean water and brackish water, condensers and chillers

- Pickling plants for sulfuric acid as well as nitric-hydrofluoric acid

- Treatment of sulfuric acids from waste

- Evaporation and crystallization of salts
