Inconel 625LCF

Name: Inconel 625LCF
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

INCONEL® alloy 625LCF (UNS N06626/W. Nr. 2.4856), developed as a fatigue-resistant type of INCONEL alloy 625, is crafted with controlled alloying, melting, and processing to offer a sheet product with impressive resistance to low-cycle and thermal fatigue up to 1200°F (650°C).

Equivalent grades

• Inconel 625LCF
• UNS N06626
• W. Nr. 2.4856

Chemical Composition Reference

58Ni-12Cr-9Mo-3.5Nb-1Co-0.02C

Physical Property Reference

• Density: 8.44 g/cc

• Tensile Strength: 827 MPa

• Melting Range: 1290-1350 °C

• Yield Strength: 414 MPa

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:

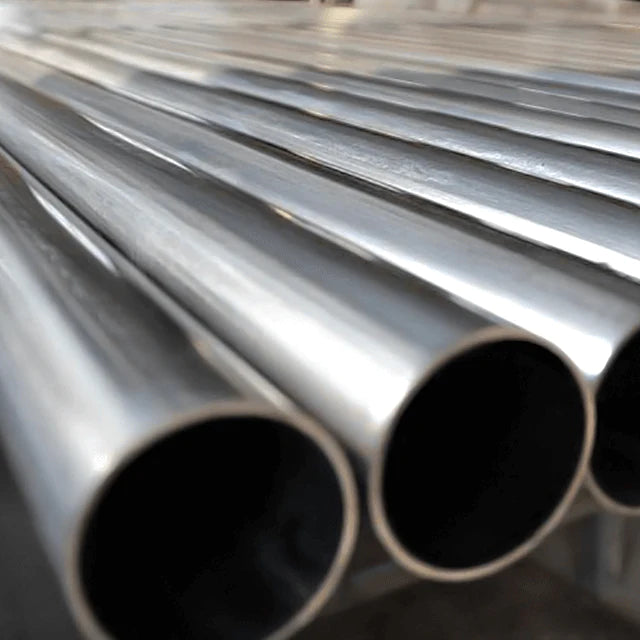

• Bar/Rod
• Pipe/Tube

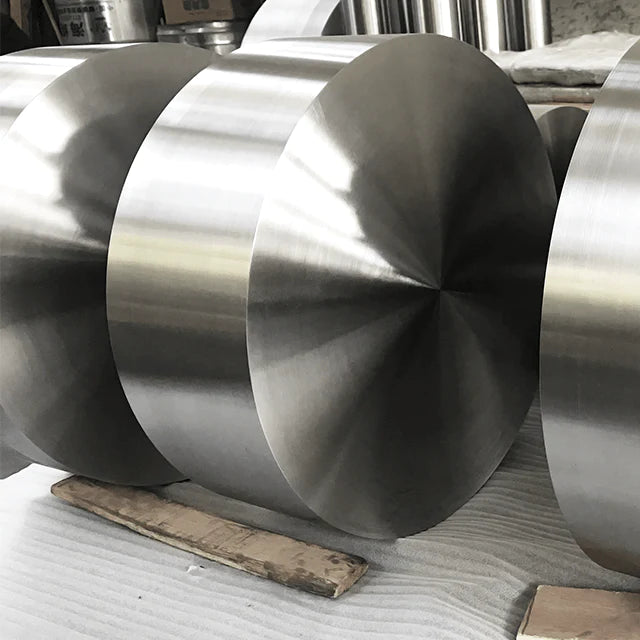

• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

Inconel 625LCF

Essential details

Available Products:

INCONEL alloy 625LCF is available as cold-rolled, annealed sheet and strip in thicknesses from 0.005 - 0.100 in (0.13 - 2.54 mm). Widths up to 48 in (1220 mm) are available in flat, cut lengths or as coils up to 20,000 lb (9000 kg).

Application:

The alloy offers a high level of performance in aircraft exhaust and automotive flexible coupling bellows, expansion joints in process or transport piping, and other applications involving resistance to low-cycle or thermal fatigue.
