Incoloy 20

Incoloy 20

INCOLOY alloy 20 provides superior corrosion protection in environments with sulfuric, chloride, phosphoric, and nitric acids. It can be effectively worked to fabricate mixing tanks, heat exchangers, and pickling equipment and is available in round, flats, pipe, tube, strip, and wire formats.

Equivalent grades

• Incoloy 20
• UNS N08020
• DIN 2.4660

Chemical Composition Reference


Physical Property Reference

• Density: 8.05 g/cm³

• Tensile Strength: 620 MPa

• Yield Strength: 300 MPa

• Elongation: 41%

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.

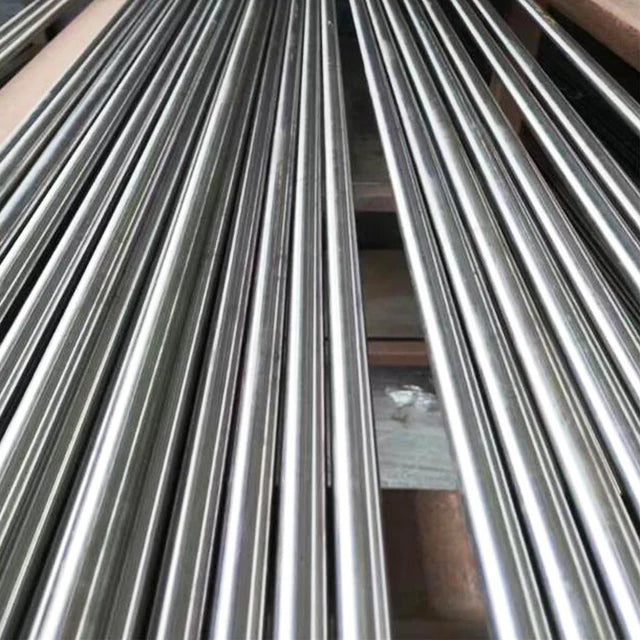

• Bar: 0.5~600mm Diameter

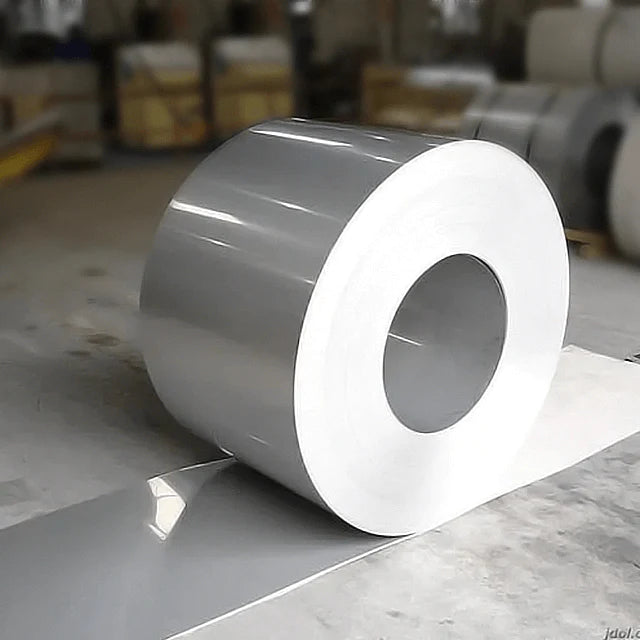

• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

Incoloy 20

Essential details
INCOLOY is an alloy composed of nickel-iron-chromium, with additions of molybdenum and copper. These alloys are categorized as super alloys and exhibit excellent corrosion resistance and high strength. Some of the INCOLOY alloys are specifically made to resist selected reagents. These alloys are capable of functioning even at high temperatures.

INCOLOY alloy 20 exhibits excellent corrosion resistance in chemical environments that contain sulphuric acid, chlorides, phosphoric acid and nitric acid. It is easy to fabricate this alloy to form mixing tanks, heat exchangers, pickling equipment etc. The standard forms in which this alloy is available are round, flats, pipe, tube, strip and wire.


- Storage tanks, agitators, pump and valve parts, fasteners, and accessories

- Heat exchangers, mixing tanks, metal cleaning, and pickling equipment, and pipelines

- Synthetic rubber, plastic, synthetic fiber manufacturing equipment

- Chemical process pipelines, reactor vessels

- Bulletproof fiber and aramid manufacturing process equipment

- SO2 scrubber and other harsh environments
