Hastelloy X

Name: Hastelloy X
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

Hastelloy X is a nickel-based alloy providing outstanding performance at elevated temperatures, as well as being formable and weldable. It offers excellent heat, oxidation, and chlorination resistance. It is also resistant to stress-corrosion cracking, pitting, and crevice corrosion in an array of environments. With its suite of corrosion resistant properties, Hastelloy X is an invaluable option for many industrial applications.

Equivalent grades

• Hastelloy X
• UNS N06002
• W.Nr. 2.4665

Chemical Composition Reference

47Ni-22Cr-18Fe-9Mo-1.5Co-0.6W-0.10C-1Mn-1Si-0.08B

Physical Property Reference

• Density: 8.22 g/cm³

• Melting Range: 1260-1355 ℃

• Electrical Resistivity: 46.6 microhm-in

• Tensile Strength: 165-762 Mpa

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube

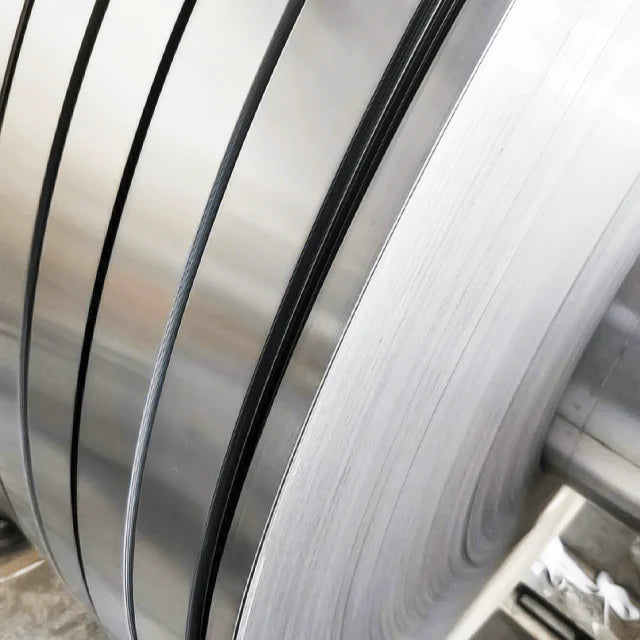

• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

Hastelloy X

Essential details

Hastelloy X is a wrought nickel base alloy with excellent high temperature strength and oxidation resistance. All of the product forms are excellent in terms of forming and welding.

Although HASTELLOY X is primarily noted for heat and oxidation resistance it also has good resistance to chloride stress-corrosion cracking and has good resistance to carburization, excellent resistance to reducing or carburizing atmospheres. Alloy X is one of the most widely used nickel base superalloys for gas turbine engine components.

Applications:

- Gas turbines

- Petrochemical industry

- Industrial furnaces

- Heat treating equipment

- Nuclear engineering

- Jet engine combustion chambers

- Aircraft cabin heaters

- Turbine exhaust components
