CP Ti Gr.4

CP Ti Gr.4

CP Ti Gr.4 (TA4) exhibits the highest strength and creep strength at elevated temperatures (500-600°C), in comparison to pure titanium. Its excellent corrosion resistance, formability, and weldability make it especially renowned. Further, its organization is reliable. It is highly sought after for human implants, such as Bone plate (medical grade titanium).

Equivalent grades

• CP Ti Gr.4
• UNS R50700
• DIN 3.7065
• Titanium Grade 4
• TA4

Chemical Composition Reference

0.05N-0.08C-0.015H-0.5Fe-0.4O-99Ti

Physical Property Reference

• Tensile Strength: 550Mpa

• Yield Strength: 483Mpa

• Elongation: 15%

• Area of Reducation: 25%

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:

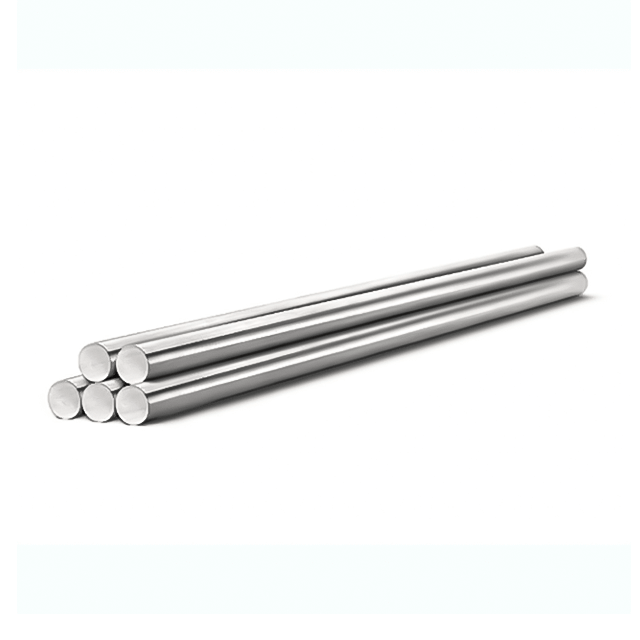

• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

INQUIRY NOW
View full details

CP Ti Gr.4

Essential details
The strength and creep strength of TA4 at high temperature (500-600°C) are the highest among pure titanium. It is famous for its excellent corrosion resistance, good formability and weldability, and its organization is stable. It is mostly used for human implants Bone plate (medical grade titanium).

Good oxidation resistance and welding performance, good corrosion resistance and machinability, but low plasticity (thermoplasticity is still good), and poor room temperature stamping performance. TA3 and TA4 can be selected when the requirements for strength, hardness and wear resistance are high.

Application:

- Cryogenic container

- Heat Exchanger

- CPI equipment

- Condenser

- Medical equipment

- Medical implant

- Surgical hardware

- Pickling basket

- Aerospace industry - aircraft frame and skin, engine parts

- Marine industry - seawater corrosion resistant pipes, ship valves and pumps, seawater desalination system parts

- Weaponry

- Auto industry

- Chemical and petrochemical industry - chemical heat - Exchangers

- Pulp and Paper Industry - Pumps, Distillation Columns, Coolers and Agitators

- Fuselage parts

- Impeller

- Compressor valve

Diesel engine spring blade

precision manufacturing

Tee

fastener

Nuclear Industry
