ASTM 316LN - EN 1.4406

Name: ASTM 316LN - EN 1.4406
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

ASTM 316LN - EN 1.4406 Grade is an austenitic steel ideal for creating many products. It is enhanced with molybdenum, which increases its resistance to corrosion, and also features nitrogen for further protection against sensitization.

Equivalent grades

• ASTM 316LN
• DIN 1.4406
• UNS S31600
• X2CrNiMoN17-11-2

Chemical Composition Reference

0.02C-0.14N-17.2Cr-10.3Ni-2.1Mo

Physical Property Reference

• Density: 7.9 g/cm³

• Tensile Strength: 620 MPa

• Yield Strength: 280 MPa

• Modulus of Elasticity: 200 GPa

• Hardness: 95 HRB

• Yield Strength: 205 Mpa

• Poisson’s Ratio: 0.27–0.30

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick

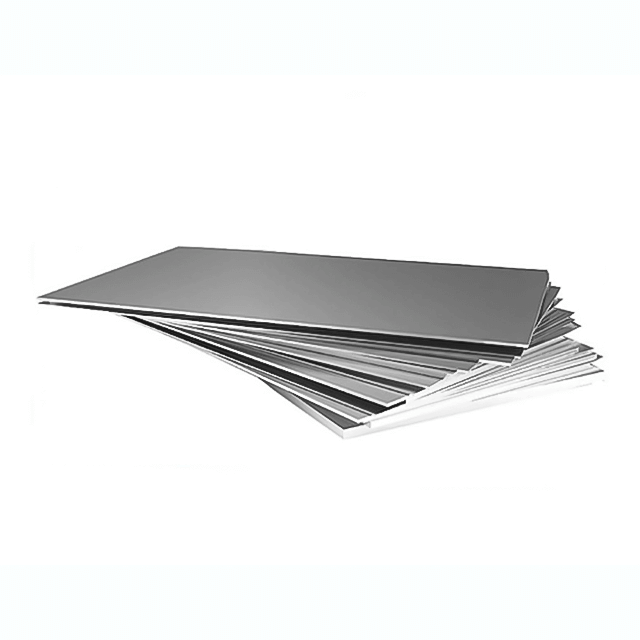

• Plate: 0.5~200mm Thick

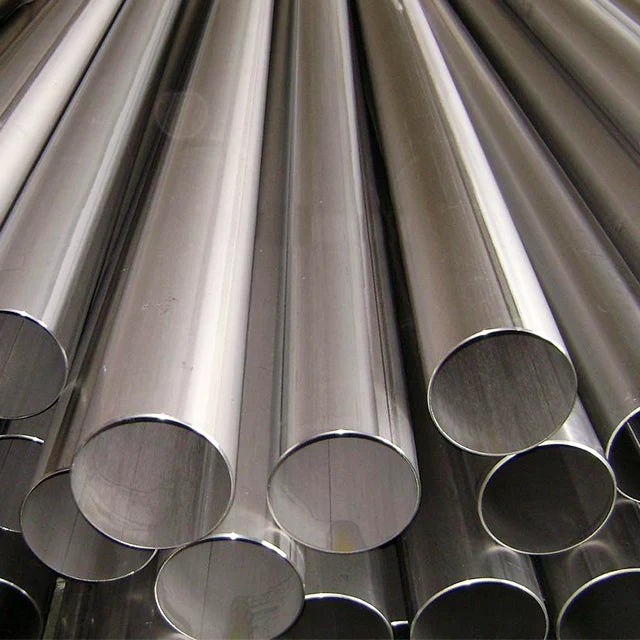

• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

ASTM 316LN - EN 1.4406

Essential details

Type 316LN stainless steel is austenitic steel suitable for the fabrication of many products. Due to its molybdenum content, it can be used in applications that require increased corrosion resistance.

It has a more stable austenitic structure, which means it provides a lower magnetic permeability. The nitrogen content adds additional resistance to sensitization.

Similar to types 316 and 316L stainless steel, type 316LN provides great resistance to general corrosion and pitting/crevice corrosion.

Applications:

- Chemical processing

- Pulp & paper industry

- Pharmaceutical applications

- Applications with high magnetic fields

- Surgical instruments

- Orthopedic implants

- Chemical and cryogenic tanks
