ASTM 316L - EN 1.4435

Name: ASTM 316L - EN 1.4435
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

EN 1.4435 is an austenitic CrNiMo-Steel providing resistance to organic and inorganic acid corrosion, as well as halogen-containing media, due to its 18% Cr, 14% Ni, and minimum 2.5% Mo composition. This steel is also highly resistant to pitting.

Equivalent grades

• ASTM 316L
• DIN 1.4435
• UNS S31603
• X2CrNiMo18-14-3

Chemical Composition Reference

0.02C-17.3Cr-12.6Ni-2.6Mo

Physical Property Reference

• Density: 8.0 kg/dm³

• Modulus of Elasticity: 200 GPa

• Thermal test at 100 ℃: 16,0 10-6/℃

• Thermal Conductivity: 15 W/m ℃

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:

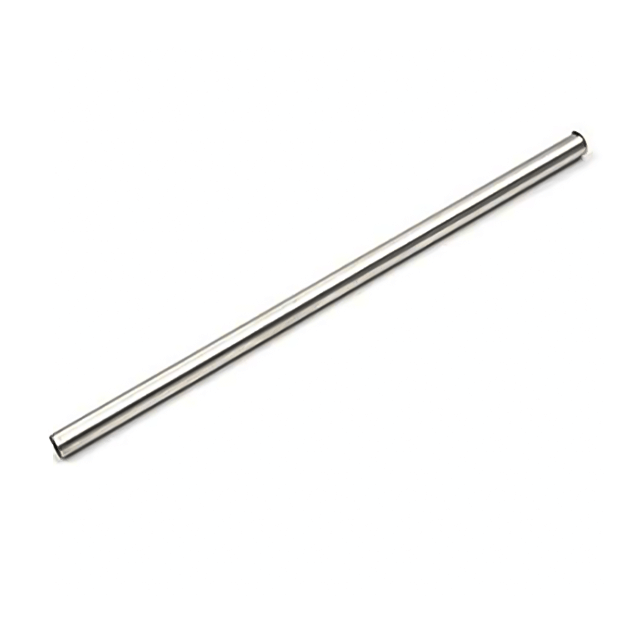

• Bar/Rod

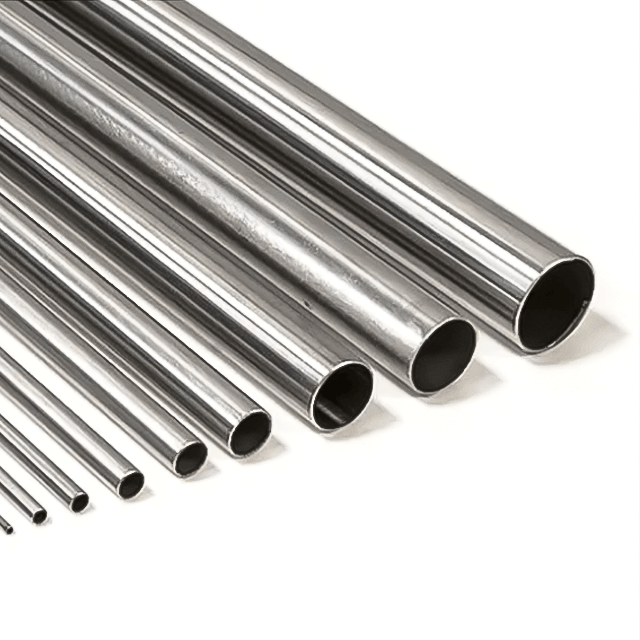

• Pipe/Tube
• Coil/Strip

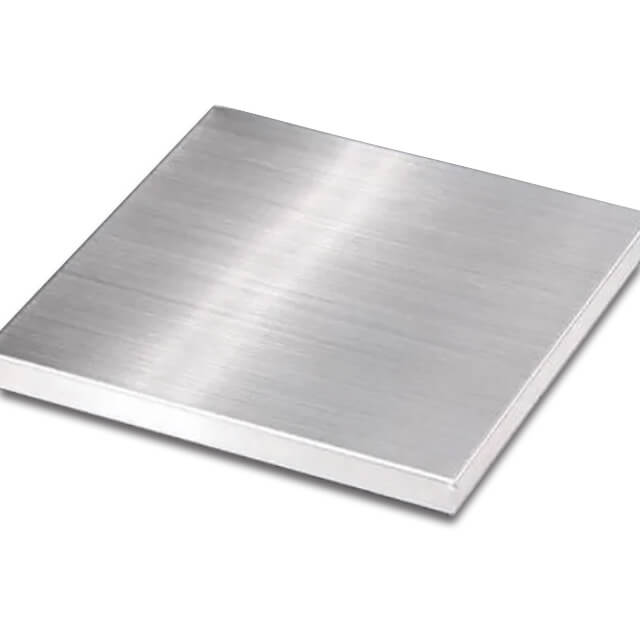

• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

ASTM 316L - EN 1.4435

Essential details

Supra 316L/4435 is a Supra 316L/4432 alternative with higher chromium and nickel content for enhanced corrosion resistance and formability. Supra 316L/4435 is an austenitic stainless steel that belongs to the standard CrNiMo stainless steel family. Supra 316L/4435 has low carbon content for improved resistance against intergranular corrosion after welding, increased nickel content for improved formability, and increased molybdenum content for slightly improved corrosion resistance.

Due to their molybdenum content, the austenitic CrNiMo standard grades can be used in applications with increased demand for corrosion resistance. Their well-balanced material properties make them suitable for the fabrication of many products.

Supra 316L/4435 is available in many product forms and dimensions. It can be supplied with a wide range of functional and aesthetic surface finishes.

Typical Applications:

- Urea plants

- Pulp and synthetic fiber plants

- Flanges and valves
