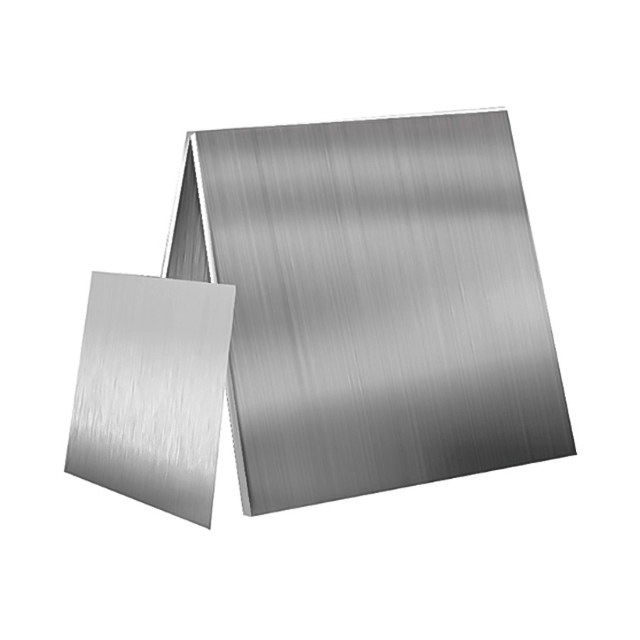

ASTM 304LN - EN 1.4311

Name: ASTM 304LN - EN 1.4311
Brand: Ninesteel
Price: 100.0 USD
Availability: InStock

Product variants

304LN stainless steel grade offers enhanced resistance to intergranular corrosion in welded conditions, superior fabrication capabilities, exceptional toughness at low temperatures, and excellent strength and ductility.

Equivalent grades

• ASTM 304LN
• DIN 1.4311
• UNS S30453
• X2CrNiN18-10

Chemical Composition Reference

0.02C-0.14N-18.5Cr-10.5Ni

Physical Property Reference

• Density: 8.00 g/cc

• Tensile Strength: 515 MPa

• Yield Strength: 205 MPa

• Elongation: 40% max

• Hardness: 92

Stock & Dimensions

Our warehouse has a large number of stock to provide you with a variety of products in different sizes, and can also customize the size according to your needs.
• Bar: 0.5~600mm Diameter
• Coil: 0.5~150mm Thick
• Plate: 0.5~200mm Thick
• Pipe: 6~630mm External Diameter; 0.5~40mm Wall Tick
• Available in specific sizes

Product Forms

We provide you with a variety of product forms, including but not limited to:
• Bar/Rod
• Pipe/Tube
• Coil/Strip
• Plate/Sheet/Circle
• Wire
• Fitting (Flange, Elbow, Tee...)
• Customize

View full details

ASTM 304LN - EN 1.4311

Essential details

Sufficient nickel content in Incoloy Alloy 925 provides protection against chloride-ion stress-corrosion cracking whilst in conjunction with the added molybdenum and copper resistance to reducing chemicals is enjoyed. Molybdenum additionally aids resistance to pitting and crevice corrosion whilst Chromium offers resistance to oxidizing environments. During heat treatment a strengthening reaction is caused by the addition of titanium and aluminium.

The nickel content is sufficient for protection against chloride-ion stresscorrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives outstanding resistance to reducing chemicals. The molybdenum aids resistance to pitting and crevice corrosion. The alloy’s chromium content provides resistance to oxidizing environments. The titanium and aluminum additions cause a strengthening reaction during heat treatment.

Applications:

- Heat exchangers

- Chemical industry

- Food industry

- Petroleum industry

- Fabrication industry

- Nuclear industry
